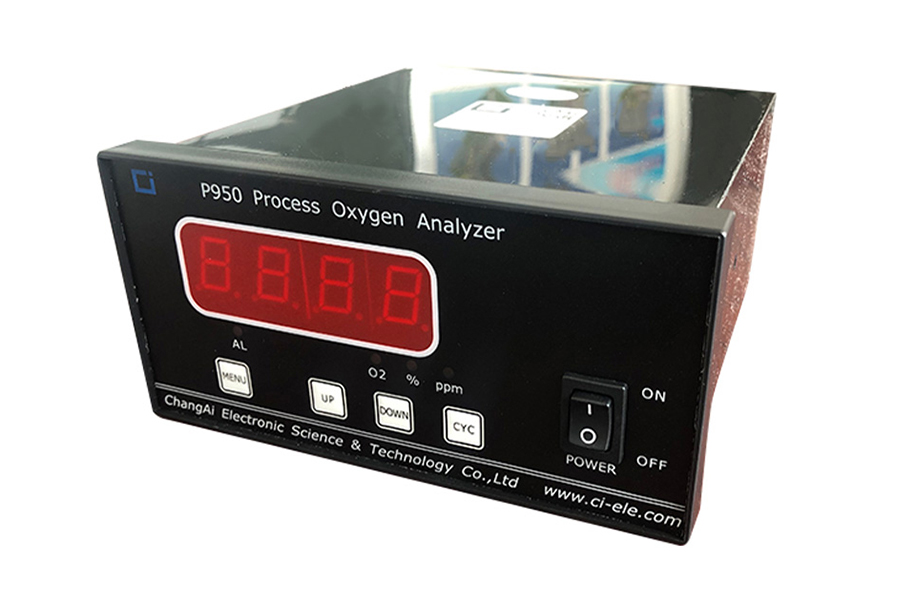

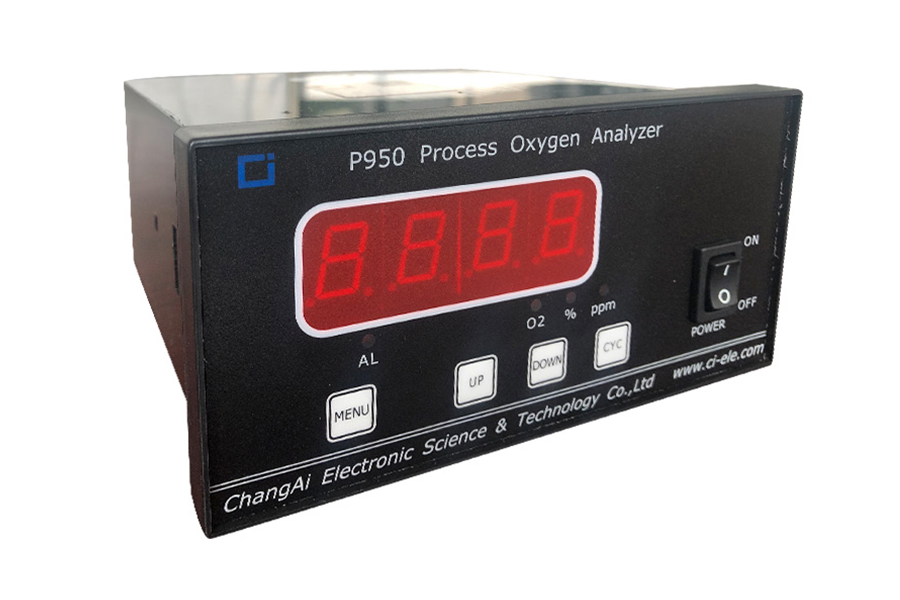

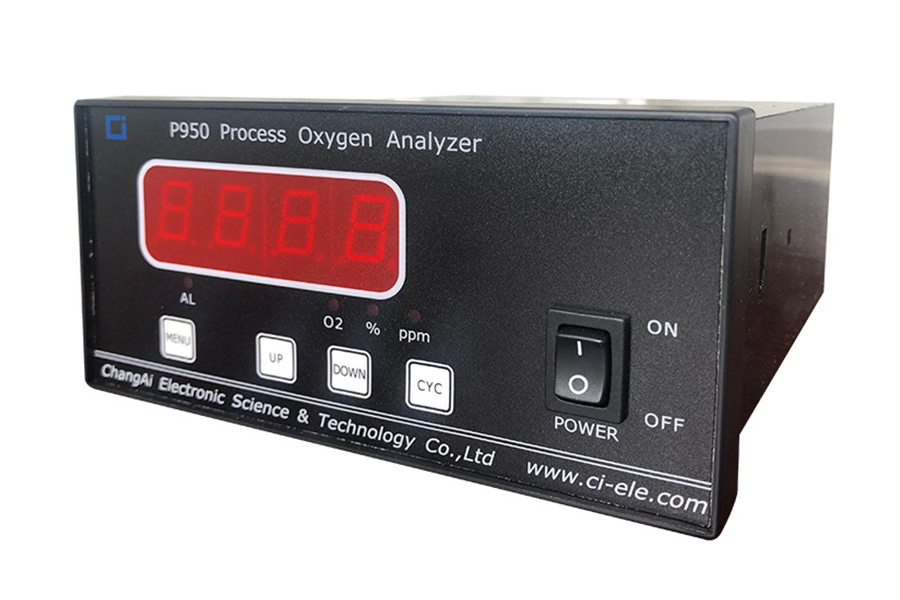

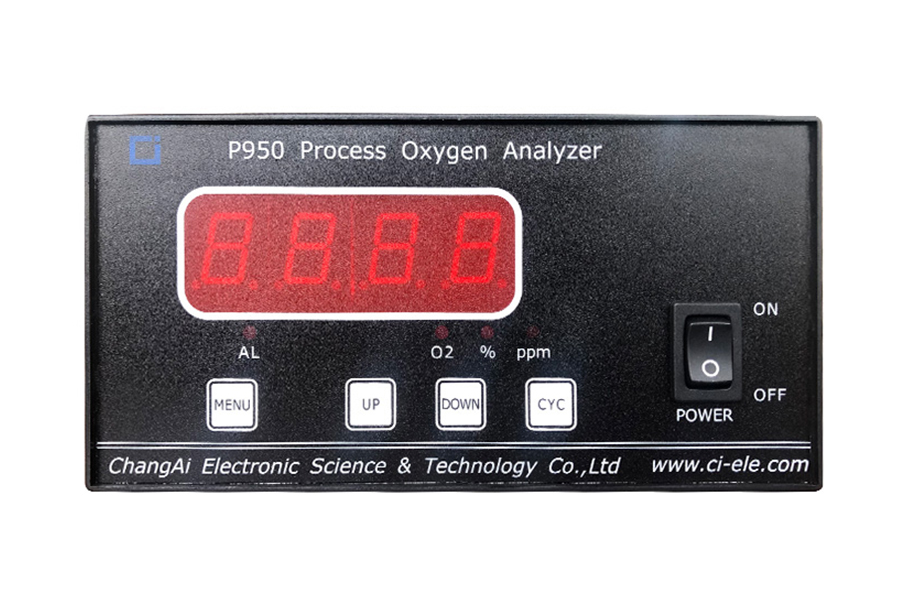

P950 Process Oxygen Analyzer is based on a microprocessor, which adopts the ion flow oxygen sensor as a measuring unit. It will display oxygen concentration in oxy-nitride mixed gas after processing and calculating through a microprocessor. There is a set of alarm points, a set of analog output signals and a set of on-off switch values for users.
Characteristic
Range | 10.00~96.00% O₂ |
Accuracy | ±2% FS |
Repeatability | ±1% FS |
Stability | ±1% FS/7d |
Response Time | T90<60S |
Electrical Connection
Power Supply | 220V AC, 50/60Hz |
Consumption | Less than 10VA |
Contact Point Capacity | 24V DC, 0.2A |
Analog output | 4-20mA (Allow less than 500Ω load) |
Environment and Operational Conditions
Install Conditions | Plate mounting, non-explosion area |
Ambient Temperature | 0℃ to 45℃, non-condensing |
Ambient Humidity | Less than 80%RH |
